7760059006 | Weidmüller

Fuse terminal block, 4 pole, 0.5-4.0 mm², 500 V, 6.3 A, 7760059006

Order No.: 53P3122
EAN: 4032248711437
MPN:
7760059006
KDKS1/35 LD 24VDC
Series: SAK-Reihe
7760059006 Weidmüller Fuse Terminals
Image may differ
Unit Price (€ / pc.)
39.3057 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
1,965.29 € *
*incl. VAT plus shipping costs
**Subject to prior sale
50 pcs.
39.3057 €

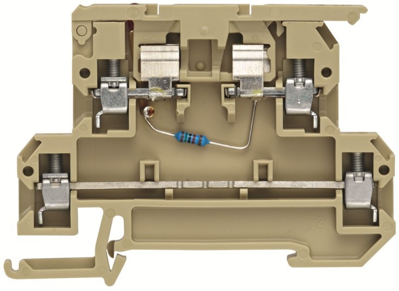

Fuse terminal block, 7760059006, Weidmüller

Fuse terminal block, screw connection, fuse disconnector, open at one end, with LED, screw connection, 4 mm², 500 V, 6.3 A, G-Si. 5x20, TS 35.

Fuse terminal block consisting of a terminal block base with fuse link carrier.

Technical specifications
Anschluss Schraubanschluss
Anzahl der Klemmstellen 2
Ausführung Sicherungs-Reihenklemme
AWG-Leiterquerschnitt AWG 24 bis 12
Bemessungsspannung 500 V
Bemessungsstoßspannung 6 kV
Breite 8 mm
Farbe beige/gelb
Höhe 73.5 mm
Länge 55.6 mm
Leiterquerschnitt 0,5-4,0 mm²
Nennstrom 6.3 A
Polzahl 4-polig
Verschmutzungsgrad 3
Logistics
Ursprungsland CN
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
