1002720000 | Weidmüller

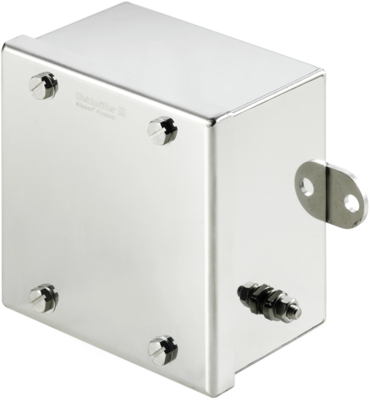

Stainless steel enclosure, (L x W x H) 100 x 190 x 190 mm, silver (RAL 7035), IP67, 1002720000
Unit Price (€ / pc.)
512.1998 € *
Available: 0 pcs.
Available in 6 Days: 5 pcs.
Leadtime: On Request **
Small terminal box, 1002720000, Weidmüller
Small terminal box, 190 x 190 x 100 mm, Mirror polished, Flange plate: No, Silver. This product ideally suited for the energy, Process and transportation industries.
Features
- High-temperature-resistant seal
- Flexible options for fastening the internal mounting rail
- Secure, permanent function of the seal is ensured by seal compression protection
- Earthing stud in the cover and base of the enclosure
- Laser cut weld seams for increased quality
Technical specifications
| Breite | 190 mm | |
| Farbe | silber | |
| Höhe | 190 mm | |
| Länge | 100 mm | |
| Material | Edelstahl | |
| RAL-Farbnummer | 7035 | |
| Schutzart (IP) | IP67 |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
