1058830000 | Weidmüller

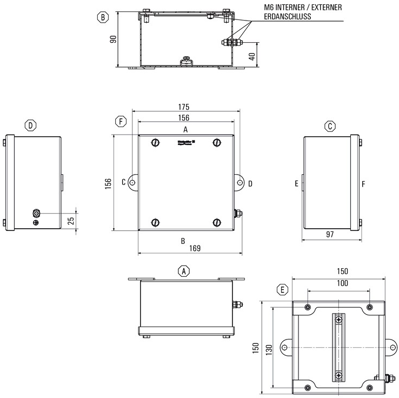

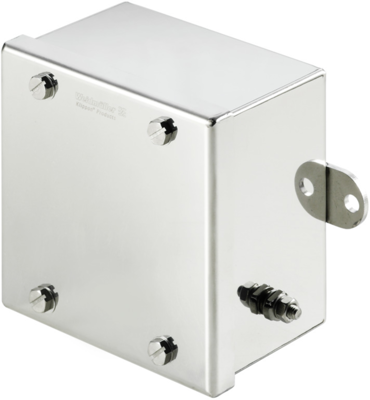

Stainless steel enclosure, (L x W x H) 90 x 150 x 150 mm, silver (RAL 7035), IP67, 1058830000

Order No.: 50P4171
EAN: 4032248800704
MPN:
1058830000
KLIPPON STB 2 SS E
Series: Klippon STB
1058830000 Weidmüller General Purpose Enclosures Image 1
1058830000 Weidmüller General Purpose Enclosures Image 2
Image may differ
Unit Price (€ / pc.)
519.0661 € *
Available: 0 pcs.
Available in 6 Days: 5 pcs.
Leadtime: 2 Weeks **
Total Price:
519.07 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
519.0661 €

Small terminal box, 1058830000, Weidmüller

Small terminal box, 150 x 150 x 90 mm, Electropolished, Flange plate: No, Silver. This product ideally suited for the energy, Process and transportation industries.

Features

  • High-temperature-resistant seal
  • Flexible options for fastening the internal mounting rail
  • Secure, permanent function of the seal is ensured by seal compression protection
  • Earthing stud in the cover and base of the enclosure
  • Laser cut weld seams for increased quality
Technical specifications
Breite 150 mm
Farbe silber
Höhe 150 mm
Länge 90 mm
Material Edelstahl
RAL-Farbnummer 7035
Schutzart (IP) IP67
Logistics
Ursprungsland PL
Zolltarifnummer 85369095
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
