1058840000 | Weidmüller

Stainless steel enclosure, (L x W x H) 90 x 150 x 190 mm, silver (RAL 7035), IP67, 1058840000

Order No.: 50P4172
EAN: 4032248800711
MPN:
1058840000
KLIPPON STB 2.1 SS E
Series: Klippon STB
1058840000 Weidmüller General Purpose Enclosures Image 1
1058840000 Weidmüller General Purpose Enclosures Image 2
Image may differ
Unit Price (€ / pc.)
543.9252 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
543.93 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
543.9252 €

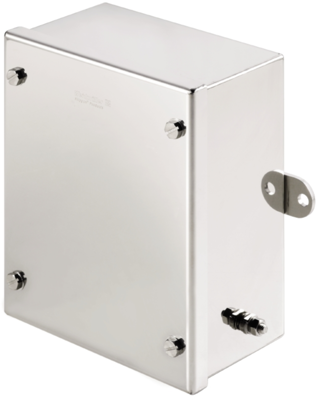

Small terminal box, 1058840000, Weidmüller

Small terminal box, 150 x 190 x 90 mm, Electropolished, Flange plate: No, Silver. This product ideally suited for the energy, Process and transportation industries.

Features

  • High-temperature-resistant seal
  • Flexible options for fastening the internal mounting rail
  • Secure, permanent function of the seal is ensured by seal compression protection
  • Earthing stud in the cover and base of the enclosure
  • Laser cut weld seams for increased quality

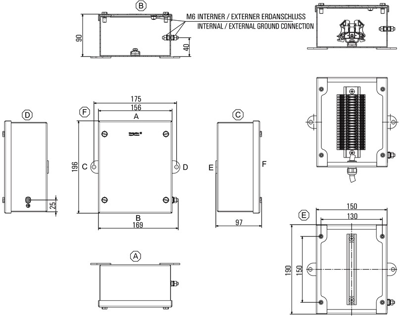

Technical specifications
Breite 150 mm
Farbe silber
Höhe 190 mm
Länge 90 mm
Material Edelstahl
RAL-Farbnummer 7035
Schutzart (IP) IP67
Logistics
Ursprungsland PL
Zolltarifnummer 85369095
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
