1194570003 | Weidmüller

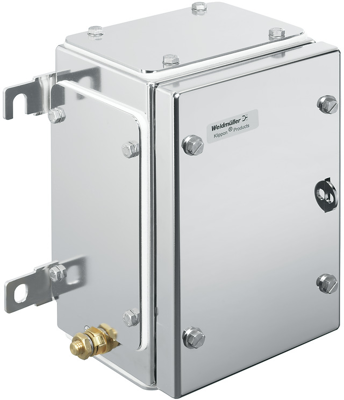

Stainless steel enclosure, (L x W x H) 133 x 152 x 229 mm, silver (RAL 7035), IP66/IP67, 1194570003
Unit Price (€ / pc.)
700.5768 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Terminal box, 1194570003, Weidmüller
The 1194570003 provides excellent performance characteristics, even under the most difficult environmental conditions. In addition, it complies with the stricter requirements of potentially explosive atmospheres found specifically in the process or power generation industries.
Features
- The gasket is protected against compression
- Completely removable padlock tab
- Cover lock outside the sealed zone
- Improved temperature performance
- Completely removable lid – without a tool
- Earthing stud in the cover and base of the enclosure
- Welded mounting feet

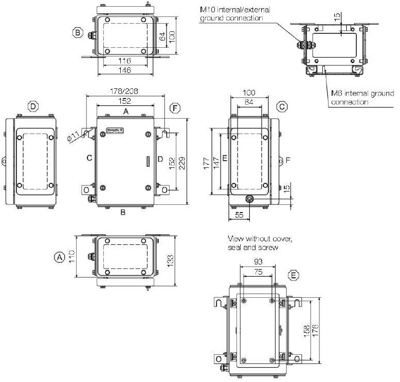

Technical specifications
| Breite | 152 mm | |
| Farbe | silber | |
| Höhe | 229 mm | |
| Länge | 133 mm | |
| Material | Edelstahl | |
| RAL-Farbnummer | 7035 | |
| Schutzart (IP) | IP66/IP67 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
