1305970000 | Weidmüller
Polyester enclosure, (L x W x H) 120 x 405 x 400 mm, silver gray (RAL 7001), IP66, 1305970000
Unit Price (€ / pc.)
329.9513 € *
Available: 0 pcs.
Available in 6 Days: 5 pcs.
Leadtime: 1 Week **

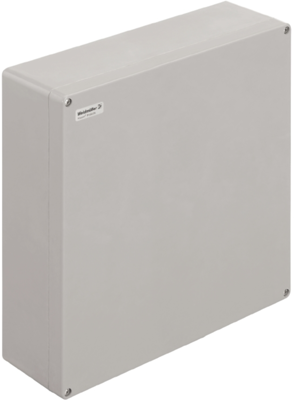

Plastic enclosure, 1305970000, Weidmüller
The enclosure range of this product is made from a high-quality glass fibre reinforced polyester and is ideal for applications and environments where corrosion resistance, impact resistance and a high IP protection class are a requirement.
Features
- Cover with stainless steel screws in cross-head / slotted design
- Fixing holes outside the sealed area to ensure high ingress protection of IP66
- Mounting directly in the enclosure or using an internal mounting plate
- Direct wall mounting possible using fixing holes or mounting feet
- Fastening thread to attach mounting rails and plates
Technical specifications
| Breite | 405 mm | |
| Farbe | silbergrau | |
| Höhe | 400 mm | |
| Länge | 120 mm | |
| Material | Polyester | |
| RAL-Farbnummer | 7001 | |
| Schutzart (IP) | IP66 |
Download
Logistics
| Ursprungsland | HU |
| Zolltarifnummer | 85389099 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
