9502820000 | Weidmüller

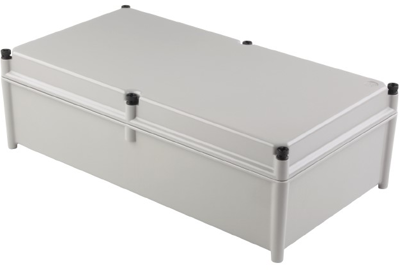

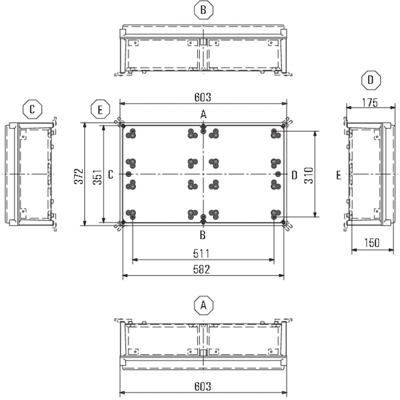

Polyester enclosure, (L x W x H) 175 x 372 x 603 mm, light gray (RAL 7035), IP67, 9502820000
Unit Price (€ / pc.)
434.112 € *
Available: 0 pcs.
Available in 6 Days: 5 pcs.
Leadtime: 4 Weeks **
Plastic enclosure, 9502820000, Weidmüller
The enclosure of this product is made of extremely tough glass fibre-reinforced polyester. This enclosure is ideal for applications that require light weight combined with high impact resistance. Also it provides universal solutions for accommodating built-in items such as regulators, measuring instruments, valves and other equipment.
Features
- Cover with nylon screws
- Fixing holes outside the sealed area
- Thread for fitting to terminal rails and mounting plates
Technical specifications
| Breite | 372 mm | |
| Farbe | lichtgrau | |
| Höhe | 603 mm | |
| Länge | 175 mm | |
| Material | Polyester | |
| RAL-Farbnummer | 7035 | |
| Schutzart (IP) | IP67 |
Download
Logistics
| Ursprungsland | BE |
| Zolltarifnummer | 85389099 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
