1664420000 | Weidmüller
Surface mount housing, size A10, die-cast aluminum, 2 x PG16, angled, longitudinal bow locking, IP65, 1664420000
Unit Price (€ / pc.)
33.5580 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
33.56 € *
Price list
Quantity
Price per unit*
1 pcs.
33.5580 €
10 pcs.
31.2137 €
25 pcs.
28.7147 €
50 pcs.
26.1324 €
*incl. VAT plus shipping costs
**Subject to prior sale

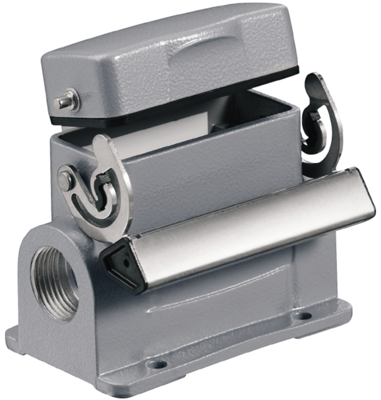

Base housing, 1664420000, WEIDMÜLLER
The 1664420000 is a special die-cast alloy and multi-layered surface sealing that provides a complete protection for the HDC housings. This product has a cleverly designed interlock system, that is manufactured from stainless steel. This guarantees a long lifespan with high resistance to corrosion and impact.
The housing interlock system provides integrated safety. The patented spring system provides the housing interlock with a secure grip and prevents accidental opening.
Technical specifications
| Ausführung | Anbaugehäuse | |
| Gehäusegröße | A10 | |
| Gehäusematerial | Aluminiumdruckguss | |
| Kabelausgang | 2 x PG16, abgewinkelt | |
| Schutzart (IP) | IP65 | |
| Verriegelung | Längsbügelverriegelung |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85389099 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei, Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
