1900380000 | Weidmüller
Surface mount housing, size B6, die-cast aluminum, M25, angled, longitudinal bow locking, IP65, 1900380000
Unit Price (€ / pc.)
26.5370 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
Total Price:
26.54 € *
Price list
Quantity
Price per unit*
1 pcs.
26.5370 €
10 pcs.
24.6806 €
25 pcs.
22.7052 €
50 pcs.
20.6584 €
*incl. VAT plus shipping costs
**Subject to prior sale

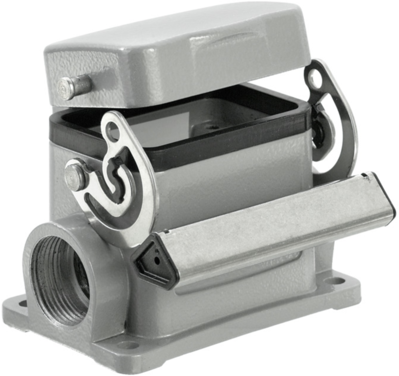

Base housing, 1900380000, WEIDMÜLLER
The 1900380000 is a special die-cast alloy and multi-layered surface sealing that provides a complete protection for the HDC housings. This product has a cleverly designed interlock system, that is manufactured from stainless steel. This guarantees a long lifespan with high resistance to corrosion and impact.
The housing interlock system provides integrated safety. The patented spring system provides the housing interlock with a secure grip and prevents accidental opening.
Technical specifications
| Ausführung | Anbaugehäuse | |
| Gehäusegröße | B6 | |
| Gehäusematerial | Aluminiumdruckguss | |
| Kabelausgang | M25, abgewinkelt | |
| Schutzart (IP) | IP65 | |
| Verriegelung | Längsbügelverriegelung |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85389099 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei, Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
