1219930000 | Weidmüller
Relay, 1 Form A (N/O), 230 V (AC), 8000 Ω, 80 A, 300 V (DC), 500 V (AC), monostable, 1219930000
Unit Price (€ / pc.)
20.6584 € *
Available: 0 pcs.
Leadtime: 13 Weeks **

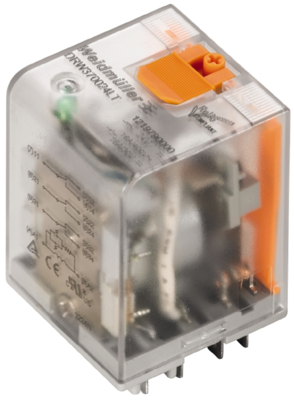

Industrial relay, 1219930000, WEIDMÜLLER
This universal industrial relays with high efficiency is suitable suitable for low, medium and high loads. It is available in a particularly large number of variants for a wide variety of industrial applications, which significantly extends the service life.
Features
- Flat blade connection
- With test button
- Protection degree: IP20
- Surge voltage category III
- With integrated status display
Technical specifications
| Anschluss | Flachstecker | |
| Kontaktart | 1 Schließer | |
| Kontaktmaterial | AgSnO2 | |
| Schaltspannung (AC) | 500 V | |
| Schaltspannung (DC) | 300 V | |
| Schaltstrom | 80 A | |
| Spulenspannung (AC) | 230 V | |
| Spulentyp | monostabil | |
| Spulenwiderstand | 8000 Ω |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85364190 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
