1220060000 | Weidmüller
Relay, 1 Form A (N/O) + 1 Form B (N/C), 48 V (DC), 1600 Ω, 80 A, 300 V (DC), 250 V (AC), monostable, 1220060000
Unit Price (€ / pc.)
19.8968 € *
Available: 0 pcs.
Leadtime: 13 Weeks **

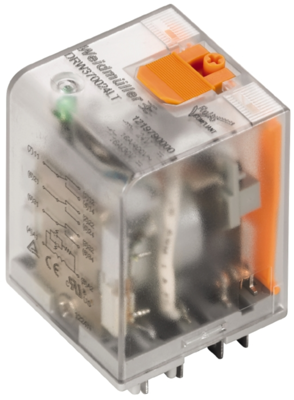

Industrial relay, 1220060000, WEIDMÜLLER
This universal industrial relays with high efficiency is suitable suitable for low, medium and high loads. It is available in a particularly large number of variants for a wide variety of industrial applications, which significantly extends the service life.
Features
- Flat blade connection
- With test button
- Protection degree: IP20
- Surge voltage category III
- With integrated status display
Technical specifications
| Anschluss | Flachstecker | |
| Kontaktart | 1 Schließer + 1 Öffner | |
| Kontaktmaterial | AgSnO | |
| Schaltspannung (AC) | 250 V | |
| Schaltspannung (DC) | 300 V | |
| Schaltstrom | 80 A | |
| Spulenspannung (DC) | 48 V | |
| Spulentyp | monostabil | |
| Spulenwiderstand | 1600 Ω |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85364190 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
