1549770000 | Weidmüller
Relay, 4 Form C (NO/NC), 60 V (AC), 1306 Ω, 12 A, 240 V (AC), monostable, 1549770000
Unit Price (€ / pc.)
11.6263 € *
Available: 0 pcs.
Available in 6 Days: 50 pcs.
Leadtime: On Request **

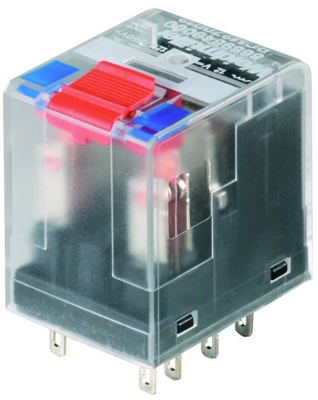

Industrial relay, 1549770000, WEIDMÜLLER
Individual relay is the right choice for the reliable separation of input and output signals in industrial automation. This high-quality universal relay with many sophisticated details and international approvals in different designs for industrial applications. The optional status LED plus test button make servicing easier.
Features
- Plug-in connection
- With test button
- Over voltage category III
- Protection degree: IP20
Technical specifications
| Anschluss | Steckanschluss | |
| Kontaktart | 4 Wechsler | |
| Kontaktmaterial | AgNi | |
| Schaltspannung (AC) | 240 V | |
| Schaltstrom | 12 A | |
| Spulenspannung (AC) | 60 V | |
| Spulentyp | monostabil | |
| Spulenwiderstand | 1306 Ω |
Download
Logistics
| Ursprungsland | AT |
| Zolltarifnummer | 85364900 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
