7760056071 | Weidmüller
Relay, 2 Form C (NO/NC), 110 V (DC), 11000 Ω, 20 A, 250 V (AC), monostable, 7760056071
Unit Price (€ / pc.)
7.3899 € *
Available: 0 pcs.
Available in 6 Days: 100 pcs.
Leadtime: On Request **

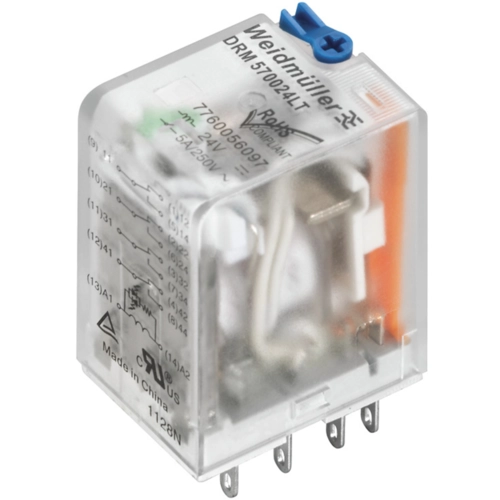

Industrial relay, 7760056071, WEIDMÜLLER
This universal industrial relays with high efficiency is suitable suitable for low, medium and high loads. It is available in a particularly large number of variants for a wide variety of industrial applications, which significantly extends the service life.
Features
- Plug-in connection
- With test button
- With mechanical switching position indicator
- Overvoltage category III
Technical specifications
| Anschluss | Steckanschluss | |
| Kontaktart | 2 Wechsler | |
| Kontaktmaterial | AgNi | |
| Schaltspannung (AC) | 250 V | |
| Schaltstrom | 20 A | |
| Spulenspannung (DC) | 110 V | |
| Spulentyp | monostabil | |
| Spulenwiderstand | 11000 Ω |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85364190 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
