8689890000 | Weidmüller
Relay, 2 Form C (NO/NC), 48 V (DC), 3072 Ω, 24 A, 240 V (AC), monostable, 8689890000
Unit Price (€ / pc.)
14.1848 € *
Available: 0 pcs.
Available in 6 Days: 50 pcs.
Leadtime: On Request **

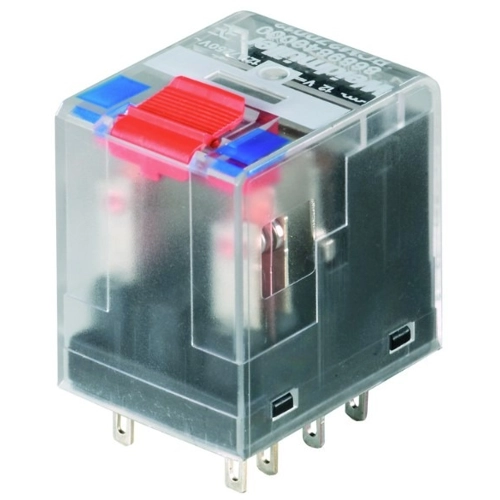

Industrial relay, 8689890000, WEIDMÜLLER
Individual relay is the right choice for the reliable separation of input and output signals in industrial automation. This high-quality universal relay with many sophisticated details and international approvals in different designs for industrial applications. The optional status LED plus test button make servicing easier.
Features
- Plug-in connection
- Protection degree: IP20
- Overvoltage category III
- With a test button
- With LED indicator
Technical specifications
| Anschluss | Steckanschluss | |
| Kontaktart | 2 Wechsler | |
| Kontaktmaterial | AgNi | |
| Schaltspannung (AC) | 240 V | |
| Schaltstrom | 24 A | |
| Spulenspannung (DC) | 48 V | |
| Spulentyp | monostabil | |
| Spulenwiderstand | 3072 Ω |
Download
Logistics
| Ursprungsland | AT |
| Zolltarifnummer | 85364900 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
