8869920000 | Weidmüller
Relay, 2 Form C (NO/NC), 24 V (AC), 350 Ω, 15 A, 240 V (AC), monostable, 8869920000
Unit Price (€ / pc.)
7.3066 € *
Available: 0 pcs.
Available in 6 Days: 50 pcs.
Leadtime: On Request **

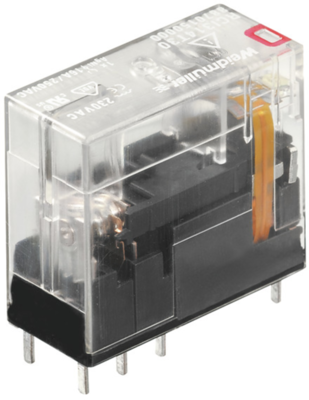

Industrial relay, 8869920000, WEIDMÜLLER
Individual relay is the right choice for the reliable separation of input and output signals in industrial automation. This high-quality universal relay with many sophisticated details and international approvals in different designs for industrial applications. The optional status LED plus test button make servicing easier.
Features
- Plug-in connection
- Protection degree: IP20
- Overvoltage category III
Technical specifications
| Connection | Steckanschluss | |
| Contact type | 2 Wechsler | |
| Contact material | AgNi | |
| Switching Voltage (AC) | 240 V | |
| switching current | 15 A | |
| Coil voltage (AC) | 24 V | |
| Coil type | monostabil | |
| Coil resistance | 350 Ω |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
