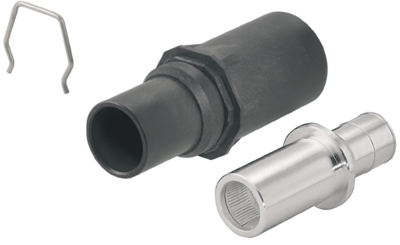

Socket, 1 pole, crimp connection, screw locking, straight, 1120600000

Order No.: 50P6164
EAN: 4032248901609
MPN:
1120600000
HDC HP 550 F 240
Series: HDC - Einsatz
1120600000 Weidmüller Other Circular Connectors
Image may differ
Unit Price (€ / pc.)
71.3167 € *
Available: 0 pcs.
Available in 6 Days: 5 pcs.
Leadtime: On Request **
Total Price:
71.32 € *
Price list
Quantity
Price per unit*
1 pcs.
71.3167 €
10 pcs.
66.3187 €
25 pcs.
62.9986 €
*incl. VAT plus shipping costs
**Subject to prior sale

Contact, 1120600000, Weidmüller

The 1120600000 is a highpower connector, innovative and maintenance-free pluggable solution for power transmission. The modular design creates a flexible construction process that allows multiple contact and shielding options to be produced for a wide range of power applications.

Features

  • Modular design offers application flexibility in one platform
  • Stainless steel mounting hardware with screw-down locking mechanism
  • 100% Submersible
Technical specifications
Ausführung Buchse
Gehäusematerial PA
Kabeldurchmesser 43 mm
Kontaktanschluss Crimpanschluss
Kontaktoberfläche versilbert
Leiterquerschnitt 240 mm²
Orientierung gerade
Polzahl 1-polig
Verriegelung Schraubverriegelung
Logistics
Ursprungsland DE
Zolltarifnummer 85359000
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
