1543680000 | Weidmüller
Weidmueller IE-FC-SET-IPDEK001-KY-P
Unit Price (€ / pc.)
141.5505 € *
Available: 0 pcs.
Available in 6 Days: 5 pcs.
Leadtime: On Request **

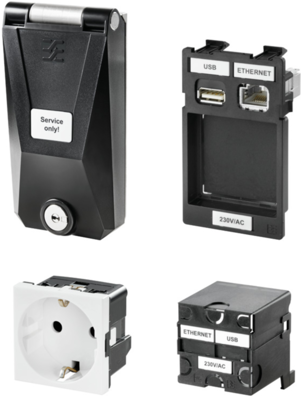

Installation housing, 1543680000, Weidmüller
FrontCom, Set. Built-in housings in only one single frame are equipped with various inserts. The easy-to-install housing first contains an insert plate with two data connections and one power connection. On top of this there is either a power socket for the power supply or a data insert for the network supply. The compact housing protects against knocks and also complies with protection class IP 65. The flush-mount housing can optionally be equipped with a lock that can be closed with a key.

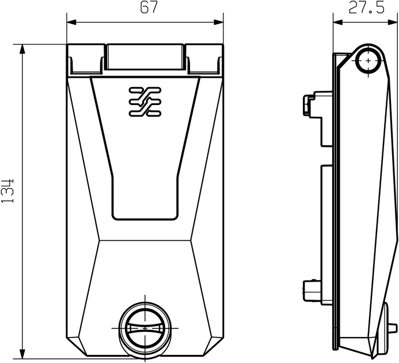

Technical specifications
| Width | 67 mm | |
| Colour | black | |
| Height | 27.5 mm | |
| Length | 134 mm | |
| Material | PC | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
