1000140001 | Weidmüller

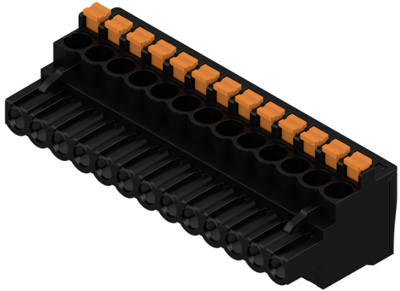

Pin header, 13 pole, pitch 5.08 mm, angled, black, 1000140001
Order No.: 50P2017
EAN: 4032248690091
MPN:
1000140001
BLF 5.08HC/13/90 SN BK BX
Unit Price (€ / pc.)
7.497 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
Male connector, 1000140001, Weidmüller
Printed circuit board connector, male connector, closed sideways, 5.08 mm, no. of poles: 13, tin-plated, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | spring connection | |
| Number of rows | 1 | |
| Version | socket header | |
| Additional parts | equipped | |
| Colour | black | |
| Contact type | socket | |
| contact surface | tin-plated | |
| Rated voltage | 400 V | |
| Rated current | 24 A | |
| Orientation | angled | |
| Pin number | 13 pole | |
| Grid | 5.08 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
