1000440001 | Weidmüller
Pin header, 5 pole, pitch 5.08 mm, angled, black, 1000440001
Order No.: 50P2035
EAN: 4032248690404
MPN:
1000440001
BLF 5.08HC/05/90LR SN BK BX
Unit Price (€ / pc.)
4.7957 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
Total Price:
4.80 € *
Price list
Quantity
Price per unit*
1 pcs.
4.7957 €
10 pcs.
4.4744 €
50 pcs.
4.0222 €
*incl. VAT plus shipping costs
**Subject to prior sale

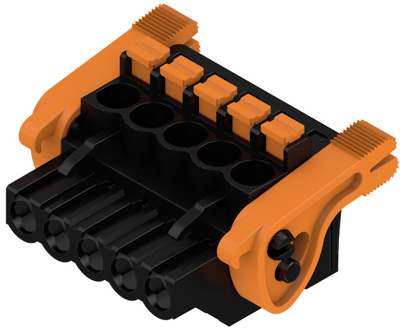

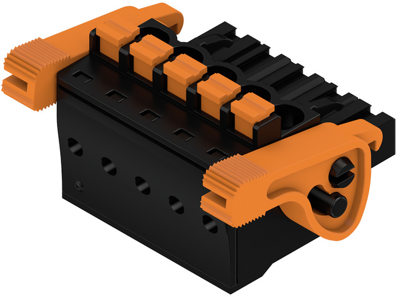

Male connector, 1000440001, Weidmüller
Printed circuit board connector, male header, release latch, 5.08 mm, no. of poles: 5, tin plated, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | spring connection | |
| Number of rows | 1 | |
| Version | socket header | |
| Additional parts | equipped | |
| Colour | black | |
| Contact type | socket | |
| contact surface | tin-plated | |
| Rated voltage | 400 V | |
| Rated current | 24 A | |
| Orientation | angled | |
| Pin number | 5 pole | |
| Grid | 5.08 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
