1001180000 | Weidmüller

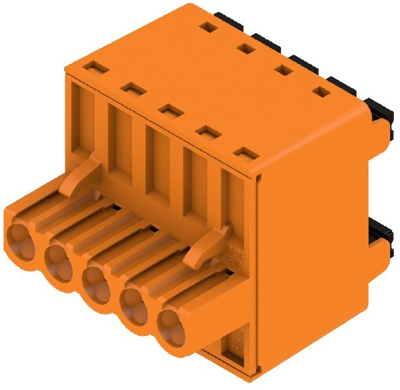

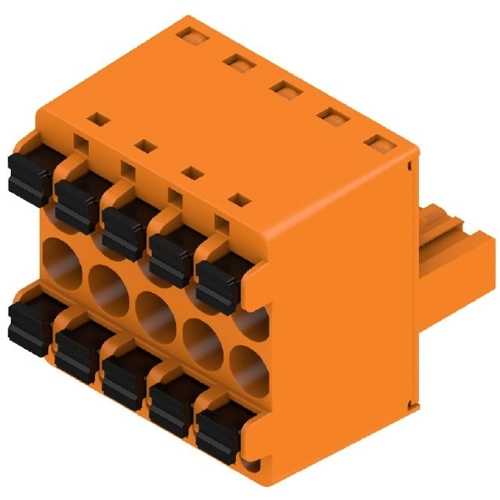

Pin header, 5 pole, pitch 5.08 mm, straight, orange, 1001180000
Order No.: 50P2083
EAN: 4032248818228
MPN:
1001180000
BLDF 5.08/05/180 SN OR BX
Unit Price (€ / pc.)
5.6406 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
Male connector, 1001180000, Weidmüller
Printed circuit board connector, male header, closed sideways, 5.08 mm, no. of poles: 5, tinned, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | push-in spring connection | |
| Number of rows | 1 | |
| Version | pin header | |
| Additional parts | equipped | |
| Colour | orange | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 400 V | |
| Rated current | 20.8 A | |
| Orientation | straight | |
| Pin number | 5 pole | |
| Grid | 5.08 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
