1013240000 | Weidmüller
Pin header, 16 pole, pitch 5.08 mm, straight, orange, 1013240000
Order No.: 50P2522
EAN: 4032248720989
MPN:
1013240000
BLF 5.08HC/16/180F SN OR BX
Unit Price (€ / pc.)
13.1257 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
13.13 € *
Price list
Quantity
Price per unit*
1 pcs.
13.1257 €
10 pcs.
12.2094 €
50 pcs.
11.1146 €
*incl. VAT plus shipping costs
**Subject to prior sale

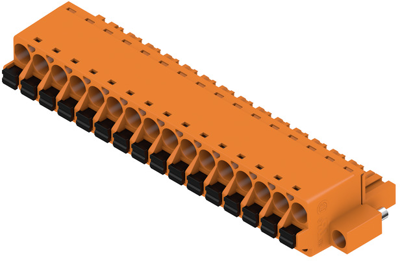

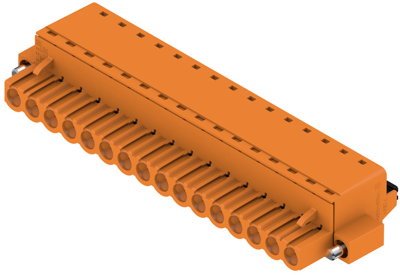

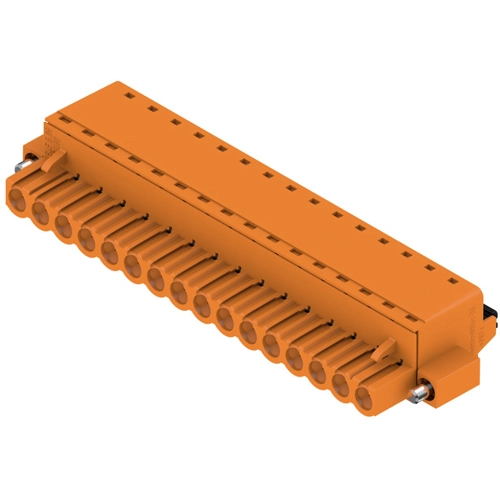

Male connector, 1013240000, Weidmüller
Printed circuit board connector, male connector, flange, 5.08 mm, no. of poles: 16, tin-plated, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Anschluss | Federanschluss | |
| Anzahl der Reihen | 1 | |
| Ausführung | Stiftleiste | |
| Bestückung | bestückt | |
| Farbe | orange | |
| Kontaktart | Stift | |
| Kontaktoberfläche | verzinnt | |
| Nennspannung | 400 V | |
| Nennstrom | 24 A | |
| Orientierung | gerade | |
| Polzahl | 16-polig | |
| Rastermaß | 5.08 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
