1029310000 | Weidmüller

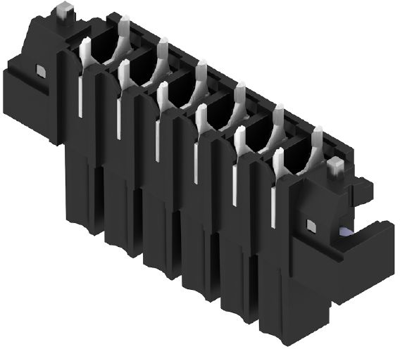

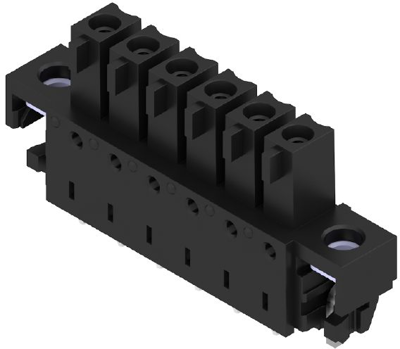

Socket header, 6 pole, pitch 3.81 mm, straight, black, 1029310000
Order No.: 50P3168
EAN: 4032248758609
MPN:
1029310000
BCL-SMT 3.81/06/180LFI 1.5SN BK BX
Unit Price (€ / pc.)
3.6414 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Female connector, 1029310000, Weidmüller
Printed circuit board connector, solder flange inverted, THT/THR solder termination, 3.81 mm, no. of poles: 6, 180°, 1.5 mm, tinned, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Anschluss | Leiterplattenanschluss | |
| Anzahl der Reihen | 1 | |
| Ausführung | Buchsenleiste | |
| Bestückung | bestückt | |
| Farbe | schwarz | |
| Kontaktart | Buchse | |
| Kontaktoberfläche | verzinnt | |
| Nennspannung | 320 V | |
| Nennstrom | 17.5 A | |
| Orientierung | gerade | |
| Polzahl | 6-polig | |
| Rastermaß | 3.81 mm |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
