1030290000 | Weidmüller

Pin header, 10 pole, pitch 3.81 mm, straight, black, 1030290000

Order No.: 50P3210
EAN: 4032248759460
MPN:
1030290000
SCD 3.81/10/180G 3.2SN BK BX

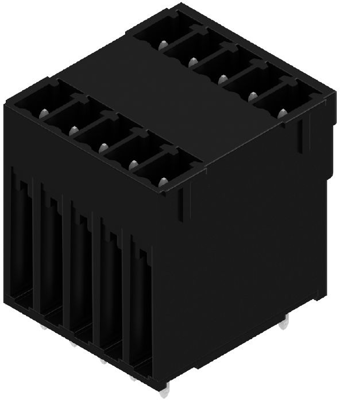

1030290000 Weidmüller PCB Connection Systems Image 1

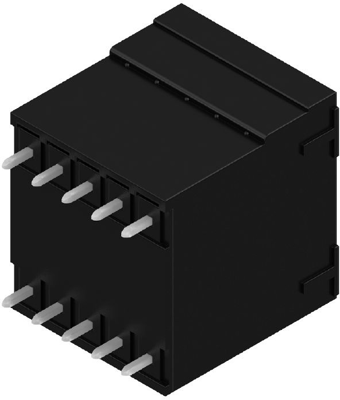

1030290000 Weidmüller PCB Connection Systems Image 2

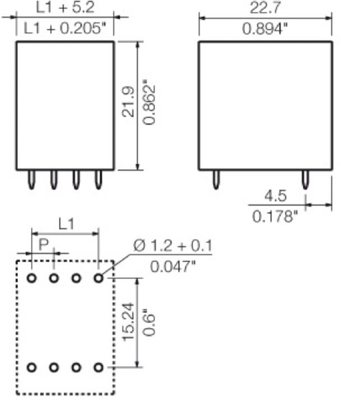

1030290000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
3.4629 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
3.46 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
3.4629 €

Male connector, 1030290000, Weidmüller

Board Connector, lateral closed, THT solder termination, 3.81 mm, no. of poles: 10, 180°, 3.2 mm, tinned, black, Box

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

Technical specifications
Connection PCB connection
Number of rows 2
Version pin header
Additional parts equipped
Colour black
Contact type pin
contact surface tin-plated
Rated voltage 320 V
Rated current 17.5 A
Orientation straight
Pin number 10 pole
Grid 3.81 mm
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
