1030520000 | Weidmüller

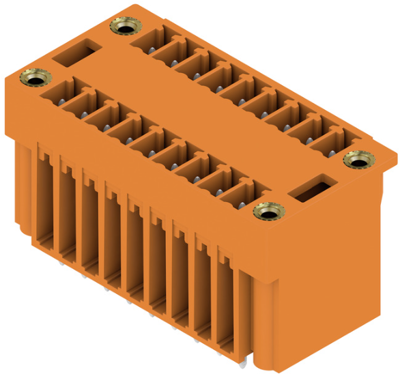

Pin header, 18 pole, pitch 3.81 mm, straight, orange, 1030520000
Order No.: 50P3223
EAN: 4032248759651
MPN:
1030520000
SCD 3.81/18/180F 3.2SN OR BX
Unit Price (€ / pc.)
9.8413 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
9.84 € *
Price list
Quantity
Price per unit*
1 pcs.
9.8413 €
10 pcs.
9.1511 €
50 pcs.
8.3419 €
*incl. VAT plus shipping costs
**Subject to prior sale
Male connector, 1030520000, Weidmüller
PCB connector, flange, THT solder termination, 3.81 mm, no. of poles: 18, 180°, 3.2 mm, tinned, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | PCB connection | |
| Number of rows | 2 | |
| Version | pin header | |
| Additional parts | equipped | |
| Colour | orange | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 320 V | |
| Rated current | 17.5 A | |
| Orientation | straight | |
| Pin number | 18 pole | |
| Grid | 3.81 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
