1031060000 | Weidmüller

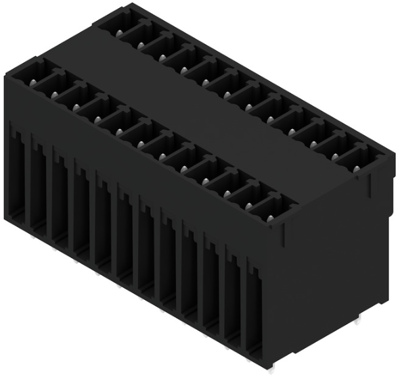

Pin header, 24 pole, pitch 3.81 mm, straight, black, 1031060000
Order No.: 50P3252
EAN: 4032248760138
MPN:
1031060000
SCD-THR 3.81/24/180G 3.2SN BK BX
Unit Price (€ / pc.)
8.9369 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Male connector, 1031060000, Weidmüller
Board Connector, closed side, THT/THR solder termination, 3.81 mm, no. of poles: 24, 180°, 3.2 mm, tin plated, black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | PCB connection | |
| Number of rows | 2 | |
| Version | pin header | |
| Additional parts | equipped | |
| Colour | black | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 320 V | |
| Rated current | 17.5 A | |
| Orientation | straight | |
| Pin number | 24 pole | |
| Grid | 3.81 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
