1038070000 | Weidmüller
Pin header, 5 pole, pitch 3.81 mm, angled, orange, 1038070000
Order No.: 50P3517
EAN: 4032248766604
MPN:
1038070000
SC 3.81/05/270F 3.2SN OR BX
Unit Price (€ / pc.)
3.7247 € *
Available: 0 pcs.
Available in 6 Days: 100 pcs.
Leadtime: On Request **
Total Price:
3.72 € *
Price list
Quantity
Price per unit*
1 pcs.
3.7247 €
10 pcs.
3.4272 €
50 pcs.
3.1178 €
100 pcs.
2.8084 €
*incl. VAT plus shipping costs
**Subject to prior sale

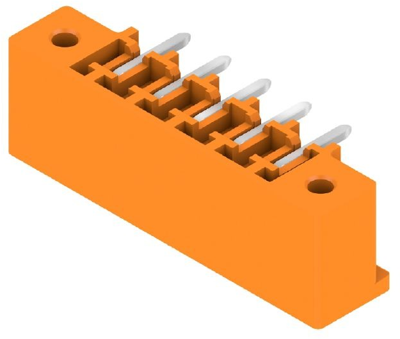

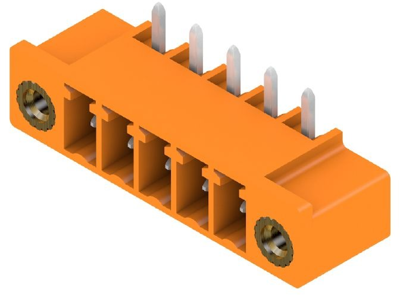

Male connector, 1038070000, Weidmüller
Printed circuit board connector, flange, THT solder termination, 3.81 mm, no. of poles: 5, 270°, 3.2 mm, tinned, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | Leiterplattenanschluss | |
| Number of rows | 1 | |
| Version | Stiftleiste | |
| Additional parts | bestückt | |
| Colour | orange | |
| Contact type | Stift | |
| contact surface | verzinnt | |
| Rated voltage | 320 V | |
| Rated current | 17.5 A | |
| Orientation | abgewinkelt | |
| Pin number | 5-polig | |
| Grid | 3.81 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
