1289590000 | Weidmüller

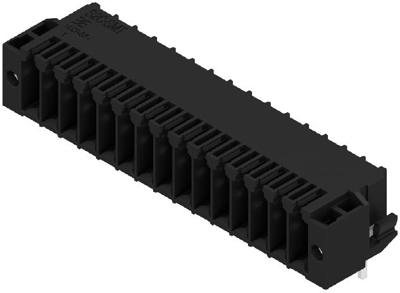

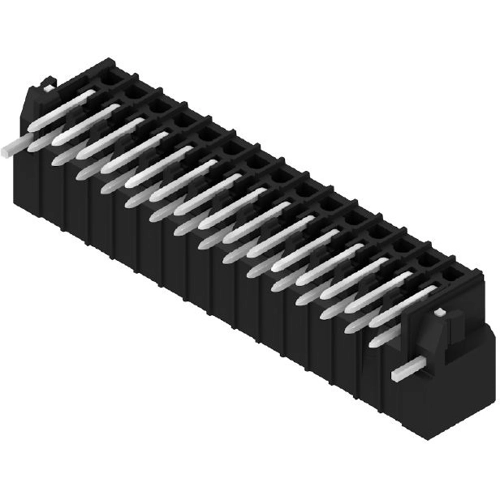

Pin header, 30 pole, pitch 3.5 mm, angled, black, 1289590000
Order No.: 51P0383
EAN: 4050118082180
MPN:
1289590000
S2C-SMT 3.50/30/90LF 3.2SN BK BX
Unit Price (€ / pc.)
7.3423 € *
Available: 0 pcs.
Available in 6 Days: 150 pcs.
Leadtime: 1 Week **
Male connector, 1289590000, Weidmüller
Printed Circuit Board Connector, Solder Flange, THT/THR Solder Termination, 3.50 mm, No. of Poles: 30, 90°, 3.2 mm, Tin Plated, Black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Anschluss | Leiterplattenanschluss | |
| Anzahl der Reihen | 2 | |
| Ausführung | Stiftleiste | |
| Bestückung | bestückt | |
| Farbe | schwarz | |
| Kontaktart | Stift | |
| Kontaktoberfläche | verzinnt | |
| Nennspannung | 200 V | |
| Nennstrom | 13.4 A | |
| Orientierung | abgewinkelt | |
| Polzahl | 30-polig | |
| Rastermaß | 3.5 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
