1290350000 | Weidmüller
Pin header, 28 pole, pitch 3.5 mm, straight, black, 1290350000
Order No.: 51P0457
EAN: 4050118083309
MPN:
1290350000
S2C-SMT 3.50/28/180LF 3.5SN BK BX
Unit Price (€ / pc.)
6.8901 € *
Available: 0 pcs.
Available in 6 Days: 150 pcs.
Leadtime: 2 Weeks **

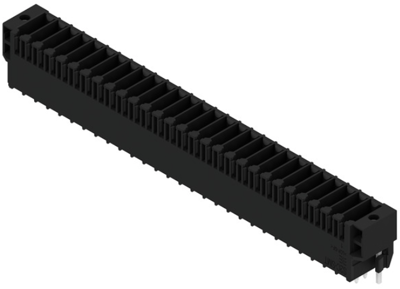

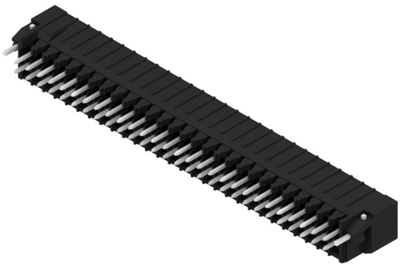

Male connector, 1290350000, Weidmüller
PCB Connector, Solder Flange, THT/THR Solder Termination, 3.50 mm, No. of Poles: 28, 180°, 3.5 mm, tinned, black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | Leiterplattenanschluss | |
| Number of rows | 2 | |
| Version | Stiftleiste | |
| Additional parts | bestückt | |
| Colour | schwarz | |
| Contact type | Stift | |
| contact surface | verzinnt | |
| Rated voltage | 200 V | |
| Rated current | 13.4 A | |
| Orientation | gerade | |
| Pin number | 28-polig | |
| Grid | 3.5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
