1682820000 | Weidmüller
Pin header, 11 pole, pitch 5.08 mm, straight, orange, 1682820000
Order No.: 51P8848
EAN: 4008190474584
MPN:
1682820000
BLL 5.08/11/180B 3.2SN OR BX
Unit Price (€ / pc.)
6.2951 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
Total Price:
6.30 € *
Price list
Quantity
Price per unit*
1 pcs.
6.2951 €
10 pcs.
5.8548 €
50 pcs.
5.3312 €
*incl. VAT plus shipping costs
**Subject to prior sale

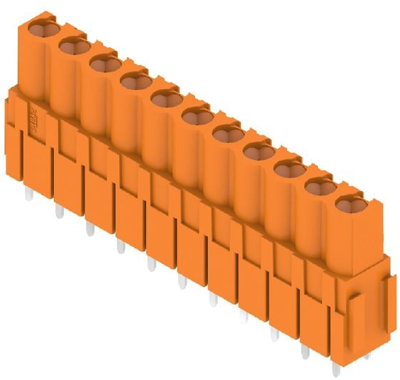

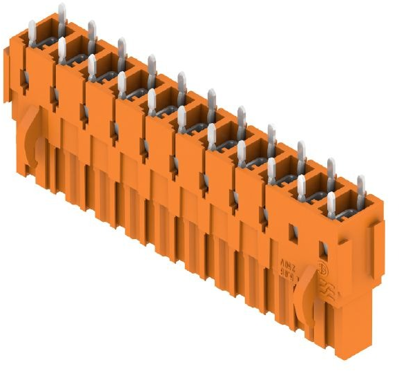

Male connector, 1682820000, Weidmüller
Board Connector, Male Connector, Dovetails for Mounting Blocks, THT Solder Termination, 5.08 mm, No. of Poles: 11, 180°, 3.2 mm, tinned.
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | PCB connection | |
| Number of rows | 1 | |
| Version | pin header | |
| Additional parts | equipped | |
| Colour | orange | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 400 V | |
| Rated current | 23 A | |
| Orientation | straight | |
| Pin number | 11 pole | |
| Grid | 5.08 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
