1688060000 | Weidmüller

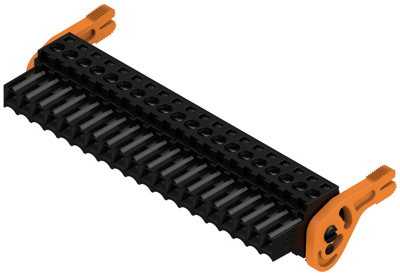

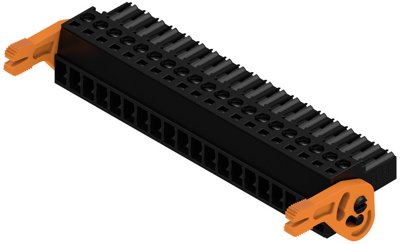

Socket header, 20 pole, pitch 3.5 mm, straight, black, 1688060000
Order No.: 51P8969
EAN: 4008190853617
MPN:
1688060000
BL 3.50/20/180LH SN BK BX
Unit Price (€ / pc.)
12.5426 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Female connector, 1688060000, Weidmüller
PCB connector, release lever, 3.50 mm, no. of poles: 20, tin-plated, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Anschluss | Schraubanschluss | |
| Anzahl der Reihen | 1 | |
| Ausführung | Buchsenleiste | |
| Bestückung | bestückt | |
| Farbe | schwarz | |
| Kontaktart | Buchse | |
| Kontaktoberfläche | verzinnt | |
| Nennspannung | 320 V | |
| Nennstrom | 17 A | |
| Orientierung | gerade | |
| Polzahl | 20-polig | |
| Rastermaß | 3.5 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
