1690480000 | Weidmüller

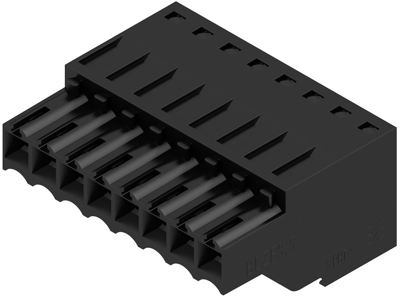

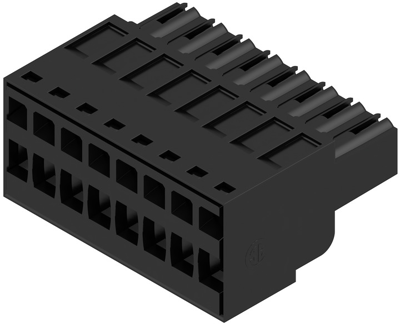

Socket header, 8 pole, pitch 3.5 mm, straight, black, 1690480000
Order No.: 51P9053
EAN: 4008190328993
MPN:
1690480000
BLZF 3.50/08/180 SN BK BX
Unit Price (€ / pc.)
6.3189 € *
Available: 0 pcs.
Available in 6 Days: 250 pcs.
Leadtime: On Request **
Female connector, 1690480000, Weidmüller
Printed circuit board connector, laterally closed, 3.50 mm, no. of poles: 8, tin-plated, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Anschluss | Zugfederanschluss | |
| Anzahl der Reihen | 1 | |
| Ausführung | Buchsenleiste | |
| Bestückung | bestückt | |
| Farbe | schwarz | |
| Kontaktart | Buchse | |
| Kontaktoberfläche | verzinnt | |
| Nennspannung | 320 V | |
| Nennstrom | 14.5 A | |
| Orientierung | gerade | |
| Polzahl | 8-polig | |
| Rastermaß | 3.5 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
