1690500000 | Weidmüller

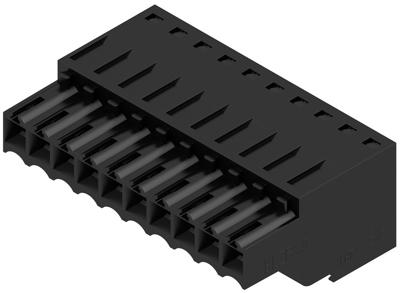

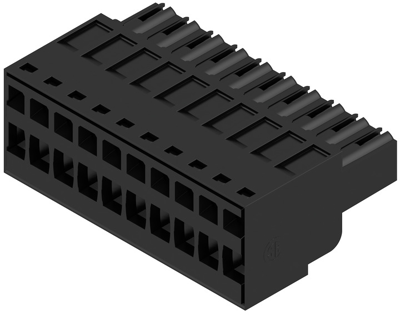

Socket header, 10 pole, pitch 3.5 mm, straight, black, 1690500000
Order No.: 51P9055
EAN: 4008190329013
MPN:
1690500000
BLZF 3.50/10/180 SN BK BX
Unit Price (€ / pc.)
8.4847 € *
Available: 0 pcs.
Available in 6 Days: 250 pcs.
Leadtime: 2 Weeks **
Female connector, 1690500000, Weidmüller
Printed circuit board connectors, laterally closed, 3.50 mm, no. of poles: 10, tin-plated, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | Zugfederanschluss | |
| Number of rows | 1 | |
| Version | Buchsenleiste | |
| Additional parts | bestückt | |
| Colour | schwarz | |
| Contact type | Buchse | |
| contact surface | verzinnt | |
| Rated voltage | 320 V | |
| Rated current | 14.5 A | |
| Orientation | gerade | |
| Pin number | 10-polig | |
| Grid | 3.5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
