1727590000 | Weidmüller

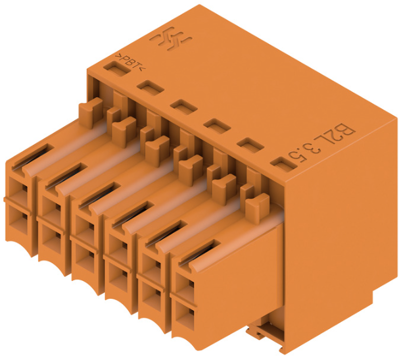

Socket header, 12 pole, pitch 3.5 mm, straight, orange, 1727590000
Order No.: 51P9835
EAN: 4032248037728
MPN:
1727590000
B2L 3.50/12/180 SN OR BX
Unit Price (€ / pc.)
7.7231 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Female connector, 1727590000, Weidmüller
Printed Circuit Board Connector, side closed, 3.50 mm, no. of poles: 12, tin plated, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | tension clamp connection | |
| Number of rows | 2 | |
| Version | socket header | |
| Additional parts | equipped | |
| Colour | orange | |
| Contact type | socket | |
| contact surface | tin-plated | |
| Rated voltage | 200 V | |
| Rated current | 10.3 A | |
| Orientation | straight | |
| Pin number | 12 pole | |
| Grid | 3.5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
