Socket header, 18 pole, pitch 3.5 mm, straight, black, 1727700000

Order No.: 51P9846
EAN: 4032248037896
MPN:
1727700000
B2L 3.50/18/180 SN BK BX
Series: OMNIMATE Signal - Serie B2L/S2L 3.50 - 2-reihig
Weidmüller

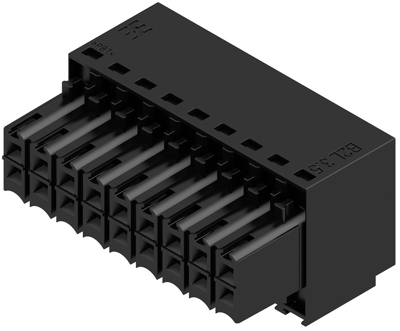

1727700000 Weidmüller PCB Connection Systems Image 1

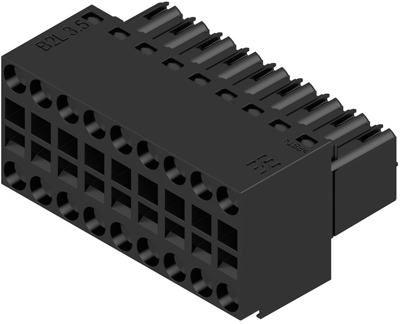

1727700000 Weidmüller PCB Connection Systems Image 2

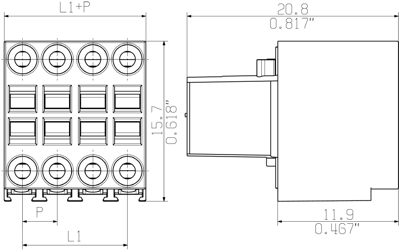

1727700000 Weidmüller PCB Connection Systems Image 3
Image may differ
Print
Key Specification:
Version socket header
Contact type socket
Pin number 18 pole
Grid 3.5 mm
Connection tension clamp connection
Download Datasheet Technical specifications
Unit Price (€ / pc.)
11.5906 € *
Available: 0 pcs.
Leadtime: On Request **
Add to Cart
Total Price:
11.59 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
11.5906 €
Description
Technical specifications
Download
Logistics
Compliance

Female connector, 1727700000, Weidmüller

Printed circuit board connector, side closed, 3.50 mm, no. of poles: 18, tin plated, black, box

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
Connection tension clamp connection
Number of rows 2
Version socket header
Additional parts equipped
Colour black
Contact type socket
contact surface tin-plated
Rated voltage 200 V
Rated current 10.3 A
Orientation straight
Pin number 18 pole
Grid 3.5 mm
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
