1727870000 | Weidmüller

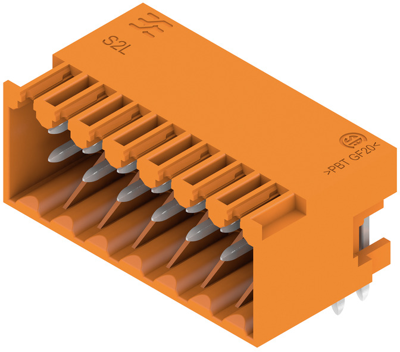

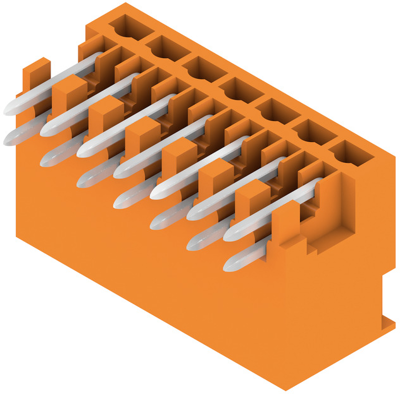

Pin header, 14 pole, pitch 3.5 mm, angled, orange, 1727870000
Order No.: 51P9862
EAN: 4032248039388
MPN:
1727870000
S2L 3.50/14/90G 3.5SN OR BX
Unit Price (€ / pc.)
2.9036 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
Male connector, 1727870000, Weidmüller
Printed circuit board connector, closed side, THT solder termination, 3.50 mm, no. of poles: 14, 90°, 3.5 mm, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | PCB connection | |
| Number of rows | 2 | |
| Version | pin header | |
| Additional parts | equipped | |
| Colour | orange | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 250 V | |
| Rated current | 10 A | |
| Orientation | angled | |
| Pin number | 14 pole | |
| Grid | 3.5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
