1728060000 | Weidmüller
Pin header, 20 pole, pitch 3.5 mm, angled, black, 1728060000
Order No.: 51P9881
EAN: 4032248039555
MPN:
1728060000
S2L 3.50/20/90G 3.5SN BK BX
Unit Price (€ / pc.)
4.1531 € *
Available: 0 pcs.
Available in 6 Days: 240 pcs.
Leadtime: On Request **

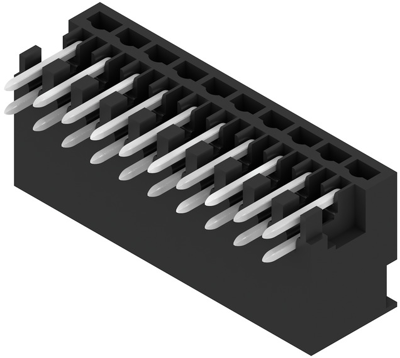

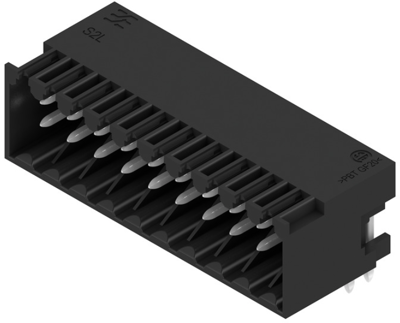

Male connector, 1728060000, Weidmüller
Printed Circuit Board Connector, closed side, THT solder termination, 3.50 mm, no. of poles: 20, 90°, 3.5 mm, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | PCB connection | |
| Number of rows | 2 | |
| Version | pin header | |
| Additional parts | equipped | |
| Colour | black | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 250 V | |
| Rated current | 10 A | |
| Orientation | angled | |
| Pin number | 20 pole | |
| Grid | 3.5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
