1729440000 | Weidmüller
Pin header, 8 pole, pitch 3.5 mm, straight, orange, 1729440000
Order No.: 51P9944
EAN: 4032248036905
MPN:
1729440000
S2L 3.50/08/180F 3.5SN OR BX
Unit Price (€ / pc.)
2.3562 € *
Available: 0 pcs.
Leadtime: 7 Weeks **

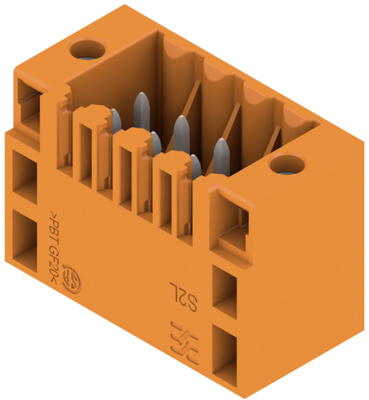

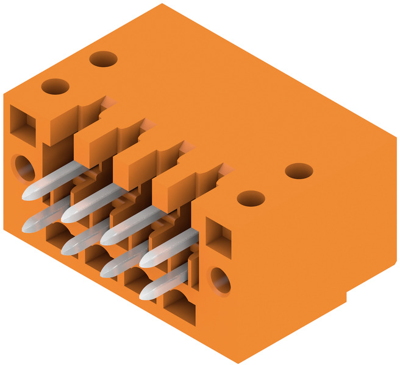

Male connector, 1729440000, Weidmüller
Printed Circuit Board Connector, flange, THT solder termination, 3.50 mm, no. of poles: 8, 180°, 3.5 mm, tinned, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | Leiterplattenanschluss | |
| Number of rows | 2 | |
| Version | Stiftleiste | |
| Additional parts | bestückt | |
| Colour | orange | |
| Contact type | Stift | |
| contact surface | verzinnt | |
| Rated voltage | 250 V | |
| Rated current | 10 A | |
| Orientation | gerade | |
| Pin number | 8-polig | |
| Grid | 3.5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
