1748260000 | Weidmüller

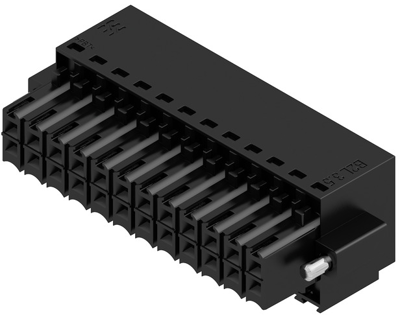

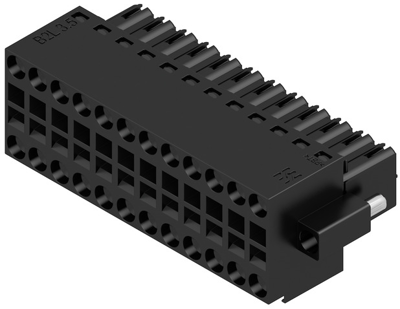

Socket header, 24 pole, pitch 3.5 mm, straight, black, 1748260000
Order No.: 52P0340
EAN: 4032248038091
MPN:
1748260000
B2L 3.50/24/180F SN BK BX
No longer available from manufacturer
Unit Price (€ / pc.)
20.2657 € *
Available: 20 pcs.
Leadtime: On Request **
Total Price:
20.27 € *
Price list
Quantity
Price per unit*
1 pcs.
20.2657 €
10 pcs.
18.8258 €
50 pcs.
17.5049 €
100 pcs.
16.6362 €
*incl. VAT plus shipping costs
**Subject to prior sale
Female connector, 1748260000, Weidmüller
PCB connectors, flange, 3.50 mm, no. of poles: 24, tin-plated, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | tension clamp connection | |
| Number of rows | 2 | |
| Version | socket header | |
| Additional parts | equipped | |
| Colour | black | |
| Contact type | socket | |
| contact surface | tin-plated | |
| Rated voltage | 200 V | |
| Rated current | 10.3 A | |
| Orientation | straight | |
| Pin number | 24 pole | |
| Grid | 3.5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
