1792810000 | Weidmüller

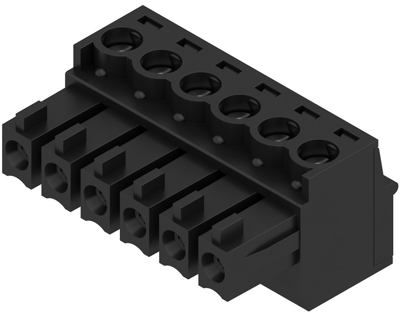

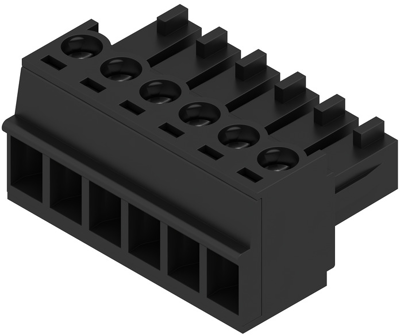

Socket header, 6 pole, pitch 3.81 mm, straight, black, 1792810000
Order No.: 52P1728
EAN: 4032248226795
MPN:
1792810000
BCZ 3.81/06/180 SN BK BX
Unit Price (€ / pc.)
3.5938 € *
Available: 0 pcs.
Available in 6 Days: 250 pcs.
Leadtime: On Request **
Female connector, 1792810000, Weidmüller
PCB connectors, closed sideways, 3.81 mm, no. of poles: 6, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | Schraubanschluss | |
| Number of rows | 1 | |
| Version | Buchsenleiste | |
| Additional parts | bestückt | |
| Colour | schwarz | |
| Contact type | Buchse | |
| contact surface | verzinnt | |
| Rated voltage | 320 V | |
| Rated current | 17.5 A | |
| Orientation | gerade | |
| Pin number | 6-polig | |
| Grid | 3.81 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
