1793380000 | Weidmüller

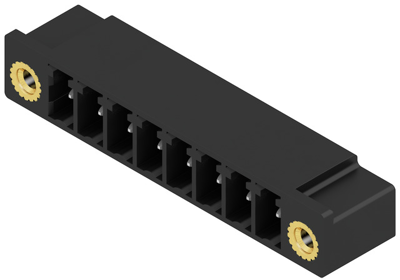

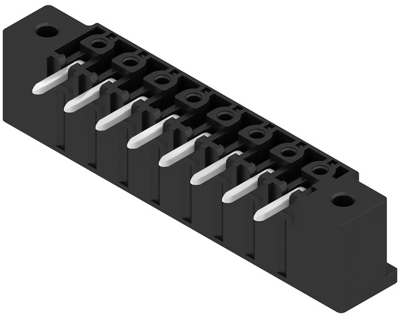

Pin header, 8 pole, pitch 3.81 mm, angled, black, 1793380000
Order No.: 52P1756
EAN: 4032248228454
MPN:
1793380000
SC 3.81/08/90F 3.2SN BK BX
Unit Price (€ / pc.)
3.0821 € *
Available: 0 pcs.
Available in 6 Days: 210 pcs.
Leadtime: On Request **
Total Price:
3.08 € *
Price list
Quantity
Price per unit*
1 pcs.
3.0821 €
10 pcs.
2.8798 €
50 pcs.
2.5823 €
*incl. VAT plus shipping costs
**Subject to prior sale
Male connector, 1793380000, Weidmüller
Printed Circuit Board Connector, Flange, THT Solder Termination, 3.81 mm, No. of Poles: 8, 90°, 3.2 mm, Tin Plated, Black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | Leiterplattenanschluss | |
| Number of rows | 1 | |
| Version | Stiftleiste | |
| Additional parts | bestückt | |
| Colour | schwarz | |
| Contact type | Stift | |
| contact surface | verzinnt | |
| Rated voltage | 320 V | |
| Rated current | 17.5 A | |
| Orientation | abgewinkelt | |
| Pin number | 8-polig | |
| Grid | 3.81 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
