1841480000 | Weidmüller

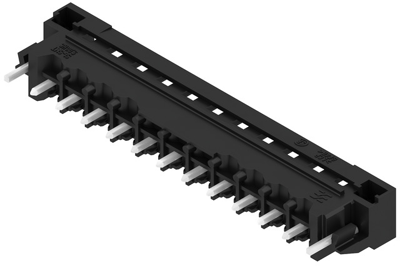

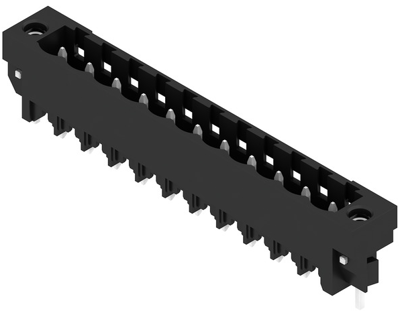

Pin header, 11 pole, pitch 5 mm, straight, black, 1841480000
Order No.: 52P3003
EAN: 4032248352388
MPN:
1841480000
SL-SMT 5.00HC/11/180LF 3.2SN BK BX
Unit Price (€ / pc.)
4.3911 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
4.39 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3911 €
10 pcs.
4.0936 €
50 pcs.
3.7009 €
*incl. VAT plus shipping costs
**Subject to prior sale
Male connector, 1841480000, Weidmüller
Board Connector, Solder Flange, THT/THR Solder Termination, 5.00 mm, No. of Poles: 11, 180°, 3.2 mm, Tin Plated, Black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | PCB connection | |
| Number of rows | 1 | |
| Version | pin header | |
| Additional parts | equipped | |
| Colour | black | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 400 V | |
| Rated current | 27.5 A | |
| Orientation | straight | |
| Pin number | 11 pole | |
| Grid | 5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
