1841640000 | Weidmüller

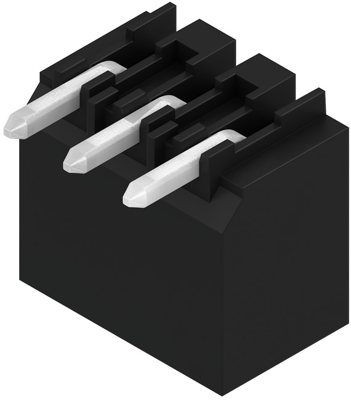

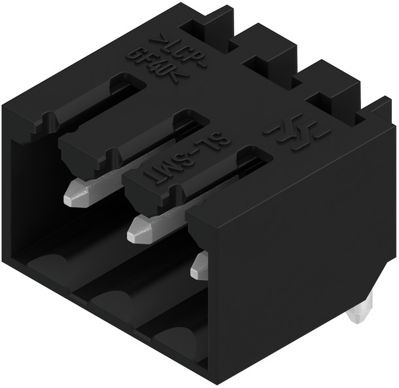

Pin header, 3 pole, pitch 3.5 mm, angled, black, 1841640000
Order No.: 52P3018
EAN: 4032248352791
MPN:
1841640000
SL-SMT 3.50/03/90G 3.2SN BK BX
Unit Price (€ / pc.)
1.0115 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Total Price:
1.01 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0115 €
10 pcs.
0.9282 €
50 pcs.
0.8449 €
100 pcs.
0.7616 €
*incl. VAT plus shipping costs
**Subject to prior sale
Male connector, 1841640000, Weidmüller
Printed Circuit Board Connector, lateral closed, THT/THR solder termination, 3.50 mm, no. of poles: 3, 90°, 3.2 mm, tin plated, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Anschluss | Leiterplattenanschluss | |
| Anzahl der Reihen | 1 | |
| Ausführung | Stiftleiste | |
| Bestückung | bestückt | |
| Farbe | schwarz | |
| Kontaktart | Stift | |
| Kontaktoberfläche | verzinnt | |
| Nennspannung | 320 V | |
| Nennstrom | 15 A | |
| Orientierung | abgewinkelt | |
| Polzahl | 3-polig | |
| Rastermaß | 3.5 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
