1842020000 | Weidmüller

Pin header, 19 pole, pitch 3.5 mm, angled, black, 1842020000

Order No.: 52P3056
EAN: 4032248353378
MPN:
1842020000
SL-SMT 3.50/19/90LF 3.2SN BK BX

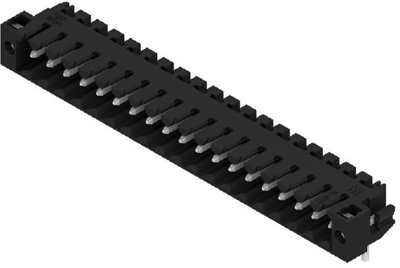

1842020000 Weidmüller PCB Connection Systems Image 1

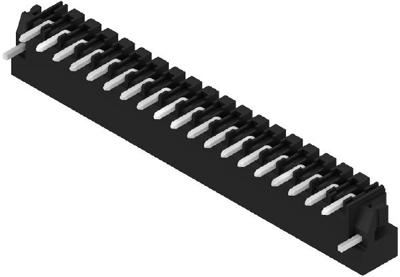

1842020000 Weidmüller PCB Connection Systems Image 2

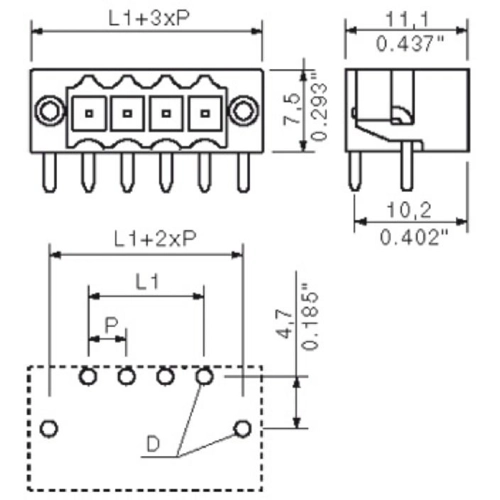

1842020000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
7.0924 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
7.09 € *
Price list
Quantity
Price per unit*
1 pcs.
7.0924 €
10 pcs.
6.5926 €
50 pcs.
6.0095 €
*incl. VAT plus shipping costs
**Subject to prior sale

Male connector, 1842020000, Weidmüller

Printed Circuit Board Connector, Solder Flange, THT/THR Solder Termination, 3.50 mm, No. of Poles: 19, 90°, 3.2 mm, Tin Plated, Black, Box

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

Technical specifications
Connection PCB connection
Number of rows 1
Version pin header
Additional parts equipped
Colour black
Contact type pin
contact surface tin-plated
Rated voltage 320 V
Rated current 15 A
Orientation angled
Pin number 19 pole
Grid 3.5 mm
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
