1842040000 | Weidmüller

Pin header, 21 pole, pitch 3.5 mm, angled, black, 1842040000

Order No.: 52P3058
EAN: 4032248353392
MPN:
1842040000
SL-SMT 3.50/21/90LF 3.2SN BK BX
1842040000 Weidmüller PCB Connection Systems Image 1
1842040000 Weidmüller PCB Connection Systems Image 2
1842040000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
7.9849 € *
Available: 0 pcs.
Available in 6 Days: 90 pcs.
Leadtime: On Request **
Total Price:
7.98 € *
Price list
Quantity
Price per unit*
1 pcs.
7.9849 €
10 pcs.
7.4375 €
50 pcs.
6.7711 €
*incl. VAT plus shipping costs
**Subject to prior sale

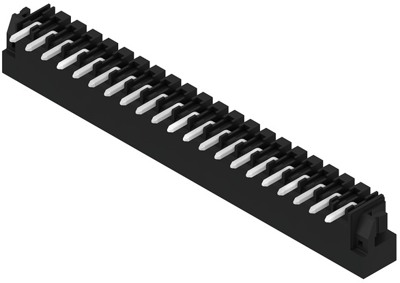

Male connector, 1842040000, Weidmüller

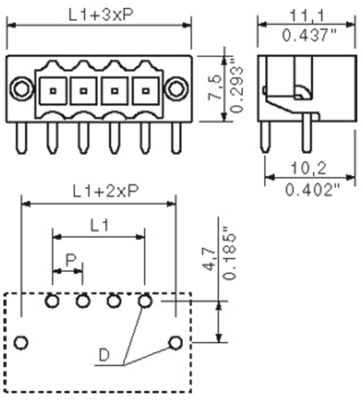

PCB Connector, solder flange, THT/THR solder termination, 3.50 mm, no. of poles: 21, 90°, 3.2 mm, tin plated, black, box

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

Technical specifications
Connection PCB connection
Number of rows 1
Version pin header
Additional parts equipped
Colour black
Contact type pin
contact surface tin-plated
Rated voltage 320 V
Rated current 15 A
Orientation angled
Pin number 21 pole
Grid 3.5 mm
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
