1842610000 | Weidmüller
Pin header, 9 pole, pitch 3.5 mm, straight, black, 1842610000
Order No.: 52P3114
EAN: 4032248353972
MPN:
1842610000
SL-SMT 3.50/09/180LF 3.2SN BK BX
Unit Price (€ / pc.)
4.0579 € *
Available: 0 pcs.
Leadtime: 18 Weeks **
Total Price:
4.06 € *
Price list
Quantity
Price per unit*
1 pcs.
4.0579 €
10 pcs.
3.7723 €
50 pcs.
3.3915 €
*incl. VAT plus shipping costs
**Subject to prior sale

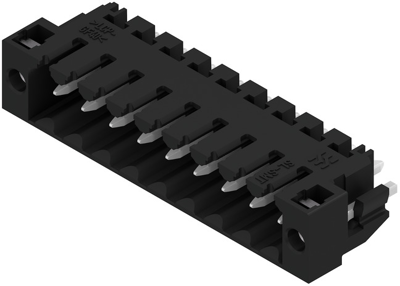

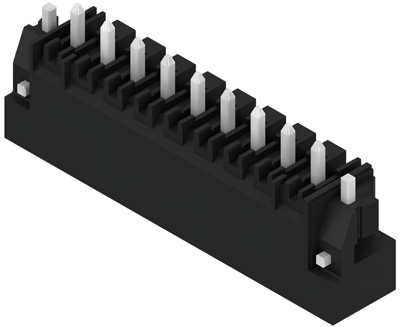

Male connector, 1842610000, Weidmüller
PCB Connector, solder flange, THT/THR solder termination, 3.50 mm, no. of poles: 9, 180°, 3.2 mm, tinned, black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Anschluss | Leiterplattenanschluss | |
| Anzahl der Reihen | 1 | |
| Ausführung | Stiftleiste | |
| Bestückung | bestückt | |
| Farbe | schwarz | |
| Kontaktart | Stift | |
| Kontaktoberfläche | verzinnt | |
| Nennspannung | 320 V | |
| Nennstrom | 15 A | |
| Orientierung | gerade | |
| Polzahl | 9-polig | |
| Rastermaß | 3.5 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
