Pin header, 8 pole, pitch 5 mm, straight, black, 1862370000
Order No.: 52P3635
EAN: 4032248426928
MPN:
1862370000
SLDV-THR 5.00/08/180G 3.2SN BK BX
Unit Price (€ / pc.)
4.3197 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
4.32 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3197 €
10 pcs.
3.9746 €
50 pcs.
3.6176 €
100 pcs.
3.2606 €
*incl. VAT plus shipping costs
**Subject to prior sale

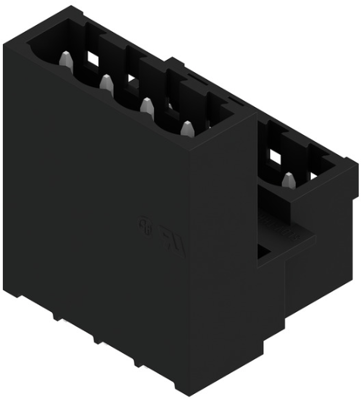

Male connector, 1862370000, Weidmüller
PCB Connector, lateral closed, THT/THR solder termination, 5.00 mm, no. of poles: 8, 180°, 3.2 mm, tin plated, black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | PCB connection | |
| Number of rows | 2 | |
| Version | pin header | |
| Additional parts | equipped | |
| Colour | black | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 400 V | |
| Rated current | 15 A | |
| Orientation | straight | |
| Pin number | 8 pole | |
| Grid | 5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
