1864330000 | Weidmüller

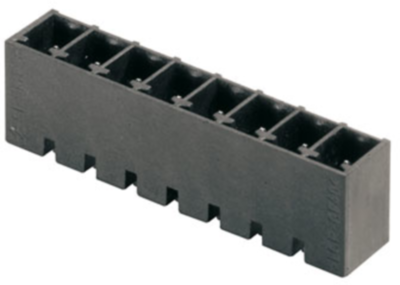

Pin header, 8 pole, pitch 3.81 mm, straight, black, 1864330000
Order No.: 52P3776
EAN: 4032248429639
MPN:
1864330000
SC-SMT 3.81/08/180G 1.5SN BK RL
Unit Price (€ / pc.)
2.2015 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Male connector, 1864330000, Weidmüller
Printed circuit board connector, side entry, THT/THR solder termination, 3.81 mm, no. of poles: 8, 180°, 1.5 mm, tinned, black, tape (Ø 330 mm).
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Anschluss | Leiterplattenanschluss | |
| Anzahl der Reihen | 1 | |
| Ausführung | Stiftleiste | |
| Bestückung | bestückt | |
| Farbe | schwarz | |
| Kontaktart | Stift | |
| Kontaktoberfläche | verzinnt | |
| Nennspannung | 320 V | |
| Nennstrom | 17.5 A | |
| Orientierung | gerade | |
| Polzahl | 8-polig | |
| Rastermaß | 3.81 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
