1881340000 | Weidmüller

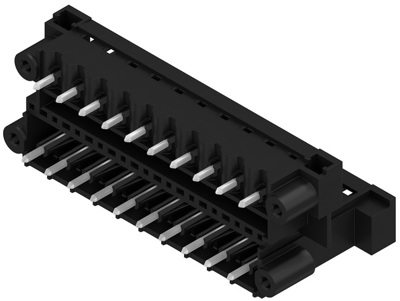

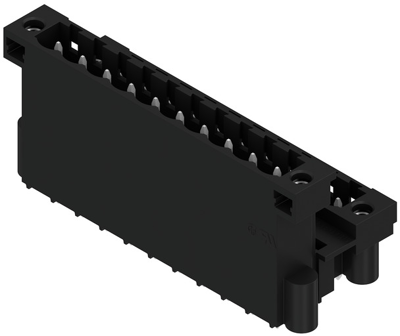

Pin header, 20 pole, pitch 5 mm, straight, black, 1881340000
Order No.: 52P4804
EAN: 4032248482719
MPN:
1881340000
SLDV-THR 5.00/20/180F 3.2SN BK BX
Unit Price (€ / pc.)
10.2816 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Male connector, 1881340000, Weidmüller
Printed Circuit Board Connector, flange, THT/THR solder termination, 5.00 mm, no. of poles: 20, 180°, 3.2 mm, tinned, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | PCB connection | |
| Number of rows | 2 | |
| Version | pin header | |
| Additional parts | equipped | |
| Colour | black | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 400 V | |
| Rated current | 15 A | |
| Orientation | straight | |
| Pin number | 20 pole | |
| Grid | 5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
