1881370000 | Weidmüller

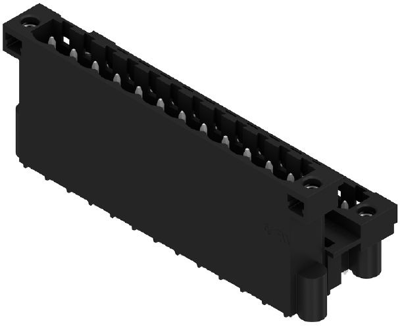

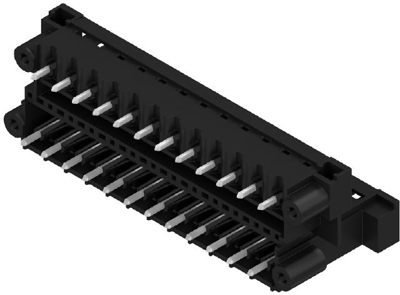

Pin header, 24 pole, pitch 5 mm, straight, black, 1881370000
Order No.: 52P4805
EAN: 4032248482726
MPN:
1881370000
SLDV-THR 5.00/24/180F 3.2SN BK BX
Unit Price (€ / pc.)
16.4220 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
16.42 € *
Price list
Quantity
Price per unit*
1 pcs.
16.4220 €
10 pcs.
15.1011 €
50 pcs.
13.7445 €
100 pcs.
12.3760 €
*incl. VAT plus shipping costs
**Subject to prior sale
Male connector, 1881370000, Weidmüller
PCB Connector, Flange, THT/THR Solder Termination, 5.00 mm, No. of Poles: 24, 180°, 3.2 mm, Tin Plated, Black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | PCB connection | |
| Number of rows | 2 | |
| Version | pin header | |
| Additional parts | equipped | |
| Colour | black | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 400 V | |
| Rated current | 15 A | |
| Orientation | straight | |
| Pin number | 24 pole | |
| Grid | 5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
