1891100000 | Weidmüller

Pin header, 22 pole, pitch 3.5 mm, straight, orange, 1891100000

Order No.: 52P5197
EAN: 4032248500628
MPN:
1891100000
SLD 3.50 V/22/180F 3.2 SN OR BX

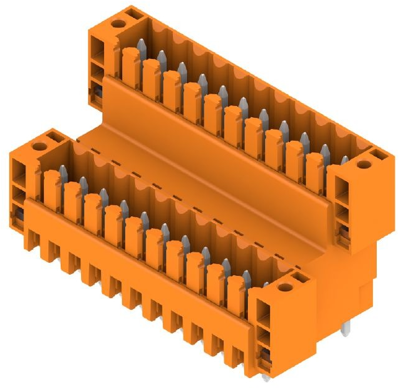

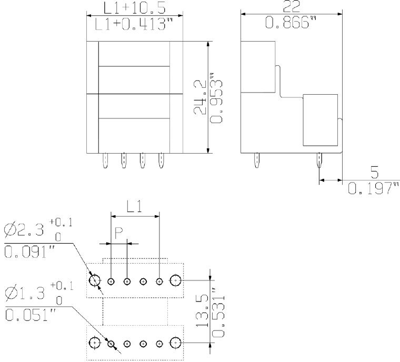

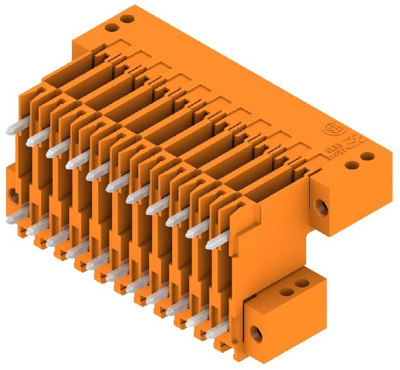

1891100000 Weidmüller PCB Connection Systems Image 1
1891100000 Weidmüller PCB Connection Systems Image 2
1891100000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
11.5906 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
Total Price:
11.59 € *
Price list
Quantity
Price per unit*
1 pcs.
11.5906 €
10 pcs.
10.7695 €
50 pcs.
9.8056 €
*incl. VAT plus shipping costs
**Subject to prior sale

Male connector, 1891100000, Weidmüller

Printed circuit board connector, flange, THT solder termination, 3.50 mm, no. of poles: 22, 180°, 3.2 mm, tinned, orange, box

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

Technical specifications
Connection PCB connection
Number of rows 2
Version pin header
Additional parts equipped
Colour orange
Contact type pin
contact surface tin-plated
Rated voltage 200 V
Rated current 10.5 A
Orientation straight
Pin number 22 pole
Grid 3.5 mm
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
